Garmin GPSMAP 795 Color Aviation GPS
- 產品品牌 garmin
- 產品價格 32000元
- 產品描述
...
Garmin航空 aera 795
電話:400-820-3876
一、概述
Aera 795是Garmin公司2012年最新推出的7寸觸摸屏航空GPS產品。虛擬的機場3D實景導航、障礙物顯示，無紙化航空日志，讓你的航行更安全、更便捷。
Experience 3-D navigation, advanced electronic flight bag capabilities and more with aera 795. Viewable in both portrait and landscape mode, the device’s 7” touchscreen puts a wealth of flight information right at your fingertips.
虛擬3D景觀

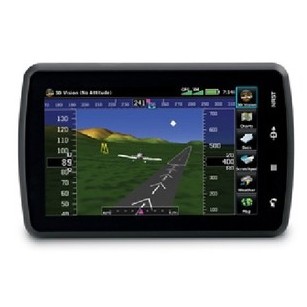

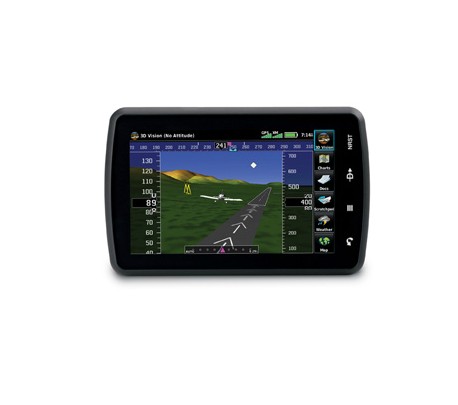

Revolutionary new 3D Vision technology shows a virtual 3-D behind-the-aircraft perspective of surrounding terrain derived from GPS and the onboard terrain database – a feature previously only available in our panel-mount avionics. Simply slide your finger across the touchscreen to rotate the view and show land and water features, obstacles, runways and airport signposts in relative proximity to the aircraft. Using its forward-looking terrain avoidance capability, aera 795 predicts in advance where towers or obstacles may exist and shades the landscape with amber or red overlays to indicate those areas. 3D Vision and other flight data are presented smoothly and continuously thanks to the device’s internal GPS that provides position updates 5 times per second (5 Hz).
aera 795’s bright 7" diagonal high-definition sunlight-readable display makes this detailed mapping easy to see in any lighting conditions and works in both portrait and landscape mode. The physical design has been optimized to fit on the yoke or for use as a knee-mounted device. There are only 4 touch keys on the bezel representing "Back", "Menu", "Direct-to" and "Nearest" for quick navigation to the most frequent used functions. All other functions are quickly accessed through Intuitive onscreen icons with labels. This unique touchscreen interface even allows you to quickly pan across the map screen and pinch to zoom.
無紙化飛行
aera 796 fullfills the role of either a Class I or Class II electronic flight bag, greatly reducing the need to rely on paper charts in the cockpit. Initial georeferenced VFR sectional and IRF enroute charts come preloaded that show your aircraft’s position overlaid directly on the relevant chart. When in IFR map mode, the 795 can display victor airways, jet routes, minimum enroute altitudes and leg distance, much like what’s found on traditional enroute charts. Initial georeferenced Garmin FliteCharts provide approach charts and airport diagrams for the U.S., while pilots who prefer Jeppesen charts and diagrams can use optional Garmin ChartView service, which utilizes Jeppesen’s extensive library to provide global georeferenced charting capabilities. aera 795 also includes a robust document viewer, so you can easily pull up weights and balances, flight manuals, raster charts or a wide range of electronically formatted materials you download to the device. A “scratch pad” feature also allows you to quickly jot down clearances and other pertinent notes while in route, while a checklist viewer allows you to create customized and interactive electronic checklists.
增強環境識別
aera 795’s built-in terrain and obstacle database not only shows contours in 3D Vision mode, but also allows for a top-down view of your entire route. To help you navigate around unfamiliar airports, SafeTaxi? provides detailed taxiway diagrams and position information for over 1,000 U.S. airports, while a private airport and heliport database greatly expands your emergency “nearest” options. FBO, ground transportation, lodging and other facility information for most U.S. airports are also available through preloaded AOPA Airport Directory Data; international pilots may choose to opt for global
AC-U-KWIK airport directory data instead
更加便攜
Thanks to its 2 serial ports, aera 795 allows for simultaneous connectivity with other hardware. With an optional Garmin GTX 330 Mode S Transponder Interface, you can access Traffic Information Service (TIS) alerts, where available, right on the device while also sending frequencies to a Garmin SL30/40 radio or relaying position reports to other devices.
By adding optional City Navigator maps, both helicopter and fixed-wing pilots add street addresses as waypoints or direct-to destinations. The device includes an SD? card slot for easy updates and expansions; easily keep track of the databases on your aera through flyGarmin, our online manager that helps you update, manage and purchase the latest aviation data for your Garmin device
三、技術性能
硬件和性能: |
|
| 尺寸，長x寬x高: | 5.1"W x 8.0"H x 1.5"D (13.0 x 20.3 x 3.8 cm) |
| 顯示屏尺寸，長x寬: | 3.6"W x 6.0"H (9.1 x 15.2 cm); 7.0" diag (17.78 cm) |
| 分辨率，長x寬: | 480 x 800 pixels |
| 顯示類型: | dual-oriented, bright, color WVGA TFT with adjustable backlighting and selectable screen orientation |
| 重量: | 26.4 ounces (748 g) with battery pack; 18.3 ounces (519 g) without battery pack; 12.7 ounces (361 g) RAM mount |
| 電池: | rechargeable, replaceable Lithium-ion |
| 電池使用時間: | up to 3 hours with full backlight and GXM 40 connected (8 hours with 50% backlighting and XM connected) |
| 防水: | 無 |
| 電壓范圍: | 11-40 |
| 接收機: | high-sensitivity with WAAS position accuracy |
| IFR或VFR: | VFR |
地圖，數據庫和存儲: |
|
| 電子底圖: | 有 |
| Jeppesen®數據庫: | 有 |
| Jeppesen數據庫的類型: | full and ARTCC, FSS frequencies and final approach waypoints |
| Jeppesen數據庫覆蓋區域: | Americas |
| 預裝地形圖: | 有 |
| 預裝障礙物數據: | yes (U.S. and Europe only) |
| SafeTaxi™機場圖: | yes (U.S. only) |
| AOPA機場目錄: | yes (U.S. only) |
| 預裝Garmin FliteCharts®: | yes (U.S. only) |
| Preloaded low & high altitude enroute airways: | 有 |
| Preloaded private airports: | yes (U.S. only) |
| 預裝地圖: | 無 |
| 可附加地圖: | 有 |
| 支持存儲卡: | yes (SD cards) |
| 內存: | internal solid state |
| 航點/收藏夾/位置: | 3,000 |
| 航線: | 50 |
特征: |
|
| 移動地圖: | 有 |
| 工具頁面: | 有 |
| 內置HSI: | 有 |
| IFR 地圖模式: | 有 |
| 兼容“交通信息服務”(TIS)報警: | 有 |
| 地形聲音報警: | 有 |
| Terrain resolution: | standard |
| 智能空域?qū)傩裕óa(chǎn)生和顯示基于高度的報警）: | 有 |
| 自動記錄日志: | 有 |
| 獨立的串口和USB接口: | 有 |
| 語音播報（例如，前方500米右轉）: | 無 |
| 語音播報路名（例如，前方500米右轉到霄云路） : | 無 |
| 車道轉向信息(指引您在適當?shù)能嚨缹?dǎo)航): | 無 |
| 三維地圖視角: | 無 |
| 藍牙免提電話: | no |
| 速度限制指示器 (在主要道路上顯示速度限制): | 無 |
| 兼容FM交通路況: | 無 |
| 自定義興趣點（可自行添加興趣點）: | 無 |
| 兼容美國XM WX天氣預報無線電: | 無 |

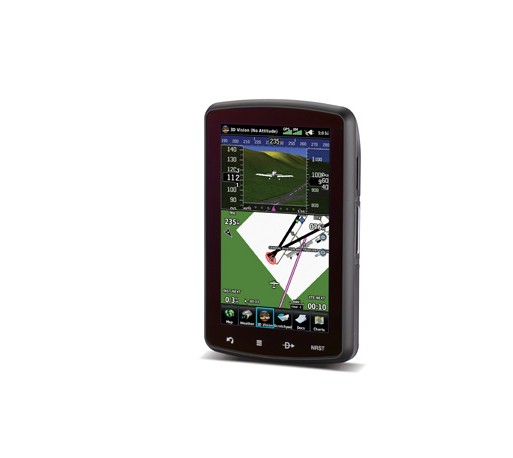

四、屏幕圖例

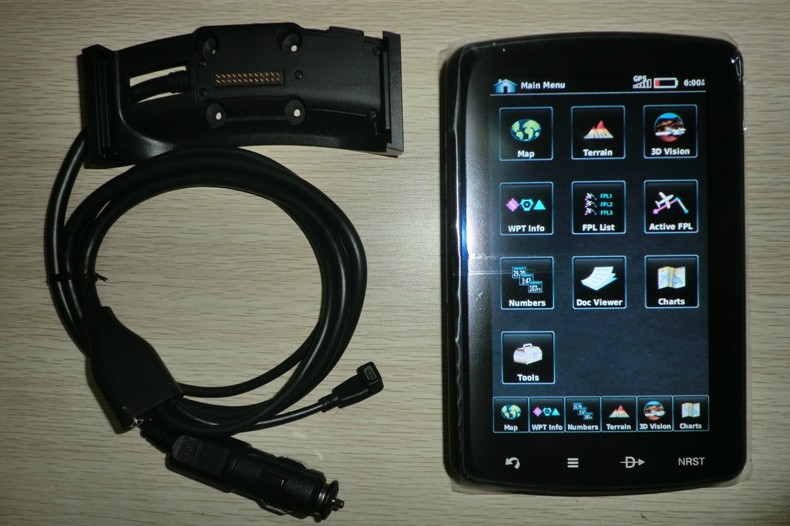

五、產品標配
aera 795主機
鎖緊安裝支架
直流12/24V點煙器電源插頭
家用交流充電器
GA25遠程吸盤天線
USB電纜
便攜包
觸摸屏清潔布
快速參考手冊
贈送的單次航空數據庫更新包
飛行員指導手冊（WORD文檔）
