START PAC® 地面啟動電源 28V 6028 QC 世達派克6028
- 產品品牌 START PAC 28V 6028
- 產品價格 33000元
- 產品描述
...

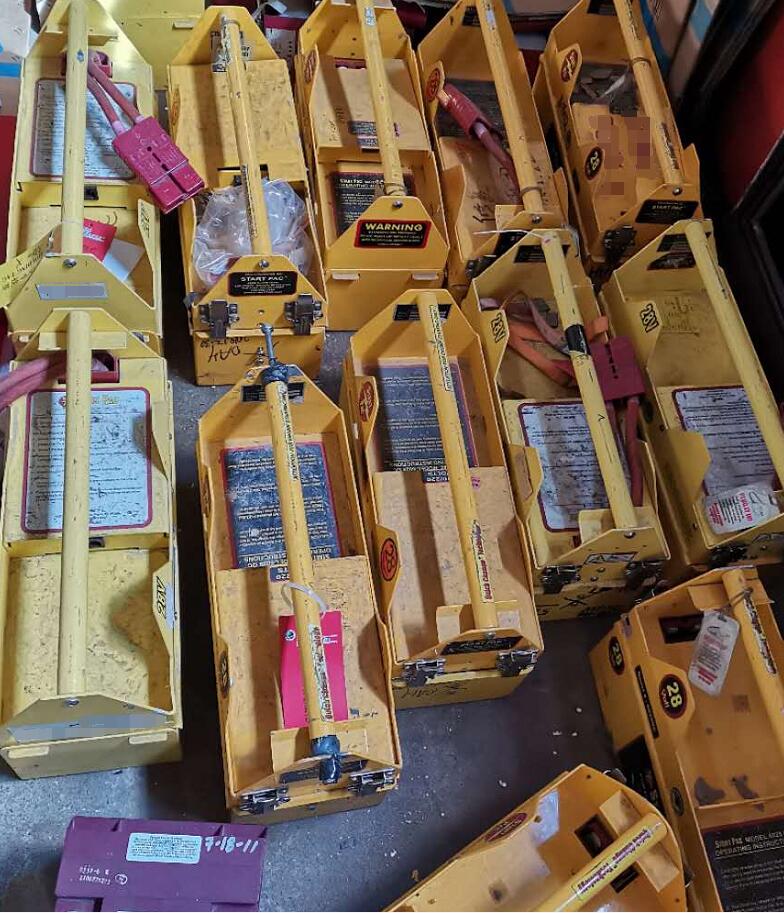

START PAC® 地面啟動電源PORTABLE STARTING UNIT - 28V 6028 QC 世達派克6028
黃盒地面電源
型號 6028
標準電壓 28V
最大電流 2300A
電池容量 26AH
重量 36KG
電池容量小，適合飛機銷售商、飛機制造廠配套贈送等。
不適合運營單位作業使用。適合私人直升機主自用。
僅用于單發直升機,純鉛電池。
與霍克HAWKER 2826 /瑞博RED BOX RB60A/世達派克START PAC 6028QC 電池完全相同.
性能參數完全相同.啟動性能偏小,僅用于1.5噸以下直升機.壽命較短.價格低廉
All In One air portable/carry-on START PAC® with built in chargers, power plug and cables.
Units are 28.5 VDC output, with universal chargers that will accept 90-240VAC 50/60 hertz.
- 26 AMP hours @ 10 Hour Rate
- 2300 AMPS Peak Current
- Available with separate trolley
- 19.2"x7.5"x11.5"
- 77 LBS. Complete
The new patent pending Start Pac® 6028QC has a separate removable battery that can be changed in 15 seconds. This feature allows the user to change batteries in the field without needing to send the Start Pac® back to the shop or Manufacturer.
This 28.5-volt unit will start the largest electrically started turbine or piston engines including the Garrett TPE331. This Start Pac will provide a faster and cooler start than most ship’s aircraft batteries, thus increasing turbine life. Various maintenance duties can be performed with this pack that requires more than 24 volts for checkout. This unit has dual redundant chargers with a total of 7 amps output with a recharge time of approximately 4 hours.
Certain aircraft will allow the ship’s generator to back charge a GPU. In this manner, Start Pac® can be recharged in the field without an AC source indefinitely.
Batteries have no memory effect and can be recharged at anytime. Made in the USA.
|
|
Description |
Part Number |
Price |
|
|
STARTPAC TROLLEY YELLOW |
11-06775 |
2690.00 |
|
|
STARTPAC 1324-1QCRBS BATTERY |
11-07231 |
5770.00 |
